Yaoyao Ding

Selected Publications

1. Tilus: A Virtual Machine for Arbitrary Low-Precision GPGPU Computation in LLM Serving

   Yaoyao Ding, Bohan Hou, Xiao Zhang, Allan Lin, Tianqi Chen, Cody Yu Hao, Yida Wang, and Gennady Pekhimenko

   Abstract PDF Github Manuscript

   Serving Large Language Models (LLMs) is critical for AI-powered applications but demands substantial computational resources, particularly in memory bandwidth and computational throughput. Low-precision computation has emerged as a key technique to improve efficiency while reducing resource consumption. Existing approaches for generating low-precision kernels are limited to weight bit widths that are powers of two and suffer from suboptimal performance due to high-level GPU programming abstractions. These abstractions restrict critical optimizations, such as fine-grained register management and optimized memory access patterns, which are essential for efficient low-precision computations. In this paper, we introduce a virtual machine (VM) designed for General-Purpose GPU (GPGPU) computing, enabling support for low-precision data types with arbitrary bit widths while maintaining GPU programmability. The proposed VM features a thread-block-level programming model, a hierarchical memory space, a novel algebraic layout system, and extensive support for diverse low-precision data types. VM programs are compiled into highly efficient GPU programs with automatic vectorization and instruction selection. Extensive experiments demonstrate that our VM efficiently supports a full spectrum of low-precision data types, and outperforms state-of-the-art low-precision kernels on their supported types. Compared to existing compilers like Triton and Ladder, as well as hand-optimized kernels such as QuantLLM and Marlin, our VM achieves performance improvements of 1.75x, 2.61x, 1.29x and 1.03x, respectively.

2. Hidet: Task-Mapping Programming Paradigm for Deep Learning Tensor Programs

   Yaoyao Ding, Cody Hao Yu, Bojian Zheng, Yizhi Liu, Yida Wang, and Gennady Pekhimenko

   Abstract Bib PDF Docs Blog Github ASPLOS 2023

   As deep learning models nowadays are widely adopted by both cloud services and edge devices, reducing the latency of deep learning model inferences becomes crucial to provide efficient model serving. However, it is challenging to develop efficient tensor programs for deep learning operators due to the high complexity of modern accelerators (e.g., NVIDIA GPUs and Google TPUs) and the rapidly growing number of operators. Deep learning compilers, such as Apache TVM, adopt declarative scheduling primitives to lower the bar of developing tensor programs. However, we show that this approach is insufficient to cover state-of-the-art tensor program optimizations (e.g., double buffering). In this paper, we propose to embed the scheduling process into tensor programs and use dedicated mappings, called task mappings, to define the computation assignment and ordering directly in the tensor programs. This new approach greatly enriches the expressible optimizations by allowing developers to manipulate tensor programs at a much finer granularity (e.g., allowing program-statement-level optimizations). We call the proposed method the task-mapping programming paradigm. In addition, we propose a new post-scheduling fusion optimization that allows developers to focus on scheduling every single operator and automates the fusion after scheduling. It greatly reduces the engineering efforts for operator fusion. Our proposed paradigm also constructs an efficient hardware-centric schedule space, which is agnostic to the program input size and greatly reduces the tuning time. With the proposed paradigm, we implement a deep learning compiler Hidet. Extensive experiments on modern convolution and transformer models show that Hidet outperforms state-of-the-art DNN inference framework, ONNX Runtime, and compiler, TVM equipped with scheduler AutoTVM and Ansor, by up to 1.48x (1.22x on average). It also reduces the tuning time by 20x and 11x compared with AutoTVM and Ansor, respectively. We open-sourced hidet at https://www.github.com/hidet-org/hidet.

   @inproceedings{hidet2023ding,
     author = {Ding, Yaoyao and Yu, Cody Hao and Zheng, Bojian and Liu, Yizhi and Wang, Yida and Pekhimenko, Gennady},
     title = {Hidet: Task-Mapping Programming Paradigm for Deep Learning Tensor Programs},
     isbn = {9781450399166},
     publisher = {Association for Computing Machinery},
     address = {New York, NY, USA},
     url = {https://doi.org/10.1145/3575693.3575702},
     doi = {10.1145/3575693.3575702},
     booktitle = {Proceedings of the 28th ACM International Conference on Architectural Support for Programming Languages and Operating Systems, Volume 2},
     pages = {370–384},
     year = {2023},
     numpages = {15},
     keywords = {tensor computation, deep learning systems, programming models, compilation, systems for machine learning},
     location = {Vancouver, BC, Canada},
     series = {ASPLOS 2023},
   }

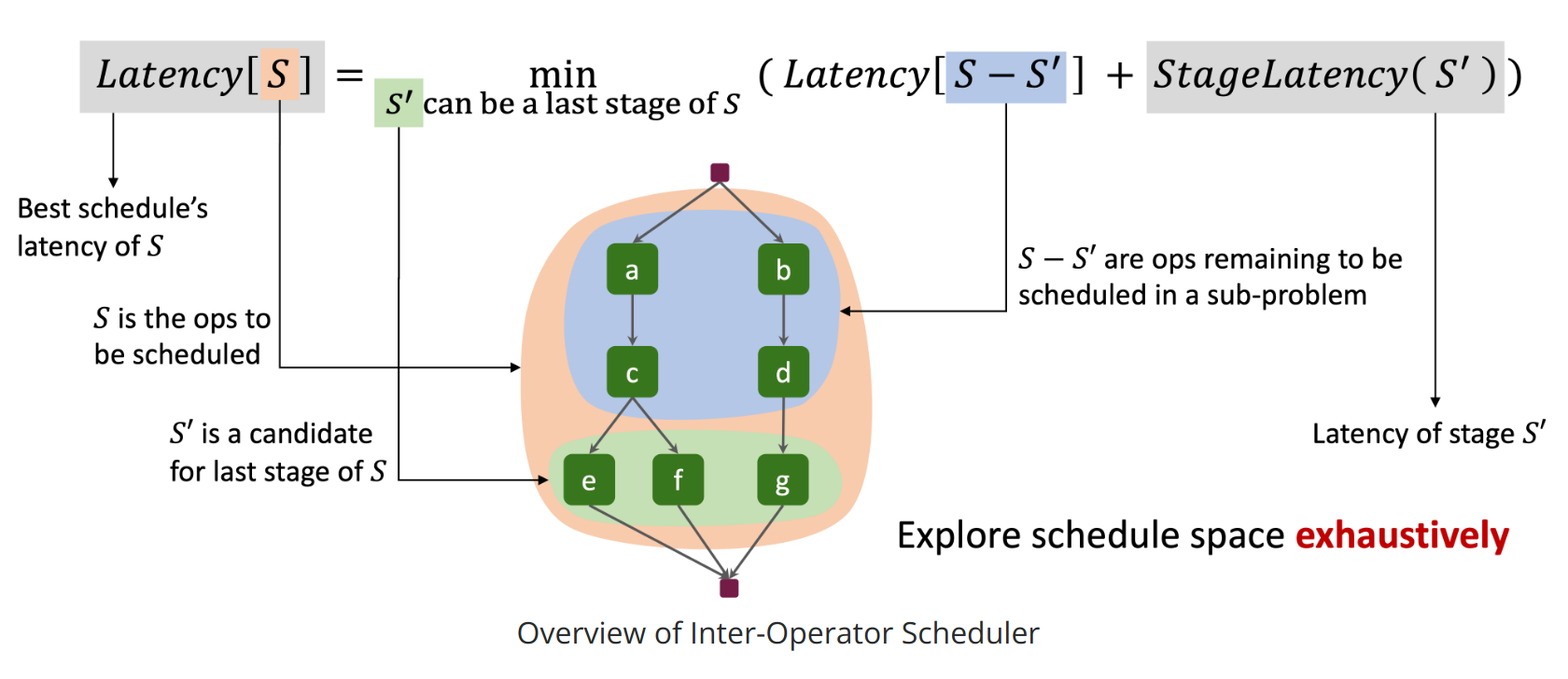

3. IOS: Inter-Operator Scheduler for CNN Acceleration

   Yaoyao Ding, Ligeng Zhu, Zhihao Jia, Gennady Pekhimenko, and Song Han

   Abstract Bib PDF Blog Github MLSys 2021

   To accelerate CNN inference, existing deep learning frameworks focus on optimizing intra-operator parallelization. However, a single operator can no longer fully utilize the available parallelism given the rapid advances in high-performance hardware, resulting in a large gap between the peak performance and the real performance. This performance gap is more severe under smaller batch sizes. In this work, we extensively study the parallelism between operators and propose Inter-Operator Scheduler (IOS) to automatically schedule multiple operators’ parallel execution through a novel dynamic programming algorithm. IOS consistently outperforms state-of-the-art libraries (e.g., TensorRT) by 1.1 to 1.5x on modern CNN benchmarks.

   @inproceedings{ios2021ding,
     author = {Ding, Yaoyao and Zhu, Ligeng and Jia, Zhihao and Pekhimenko, Gennady and Han, Song},
     booktitle = {Proceedings of Machine Learning and Systems},
     editor = {Smola, A. and Dimakis, A. and Stoica, I.},
     pages = {167--180},
     title = {IOS: Inter-Operator Scheduler for CNN Acceleration},
     volume = {3},
     year = {2021},
   }
